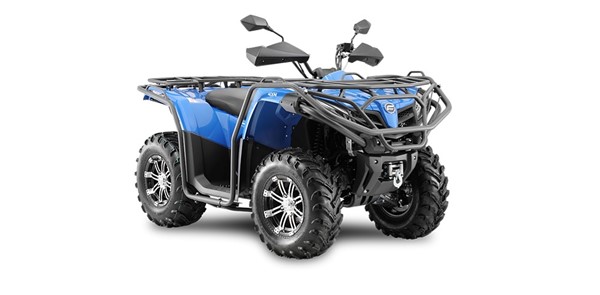

A rugged performer, CFMoto's X500 Farm Spec, a purpose built ATV for Aussie conditions and with farm ready features, straight out of the box.
These include electronic power steering (EPS), full protector bar kit, alloy A-Arm guards, alloy wheels with 6ply 25 inch tyres, 2500lb heavy duty winch, tow pack and hand-guards all as standard fitment.
The X500 Farm Spec is powered by CFMoto's 500cc, 38HP, liquid cooled EFI engine. Delivering a smooth workable power delivery, perfect for tasks around the farm.
Tough Canadian CVTech transmission with L-H-N-R drive modes, selectable 2WD/4WD with front diff lock, independent suspension and sturdy steel carrier racks makes for one dependable workhorse.
Fully equipped and farm ready, CFMoto's X500 Farm Spec is one tough ATV that is built to work.
Features
| Powerful 500cc Liquid cooled EFI Engine |
| Tough Canadian CVTech Transmission |
| Engine Braking |
| Selectable 2WD/4WD Modes with front diff lock |
| L-H-N-R range |
| Independent front and rear suspension |
| Hydraulic disc brakes |
| Heavy duty front and rear racks |
| Towing Package |
| Indicators, horn and mirror as standard |
| Electronic power steering (EPS) |
| 12 inch alloy wheels |
| 6 ply tyres |
| Alloy A-Arm protectors |
| Protector bars |
| 2500lb winch |
|
Handguards
|
Engine
|
| Engine Type: |
Single Cylinder, 4 Valves, 4 Stroke, SOHC |
| Displacement: |
495cc |
| Power: |
28kW / 38hp @6800 RPM |
| Bore & Stroke: |
91 x 76.2 mm |
| Compression: |
10.3:1 |
| Fuel System: |
E.F.I. (Bosch) |
| Max. Torque: |
46N·m/5800 RPM |
| Cooling System: |
Liquid |
| Ignition: |
ECU |
| Starting: |
Electric |
| Transmission: |
CVTech |
Size / Weight
|
| Length x Width x Height: |
2100 x 1100 x 1150 mm |
| Seat Height: |
800 mm |
| Wheelbase: |
1,260 mm |
| Ground Clearance: |
250 mm |
| Fuel Capacity: |
18.5 L |
| Dry Weight: |
360 kg |
Suspension
|
| Front: |
Independent |
| Rear: |
Independent |
Brake
|
| Front: |
Hydraulic disc |
| Rear: |
Hydraulic disc |
Capacity
|
| Towing: |
350 kg |
| Carrying: |
35kg (front) / 70kg (rear) |
